Replace Raychem BPTM 25KV yellow insulation tubing

Product Description

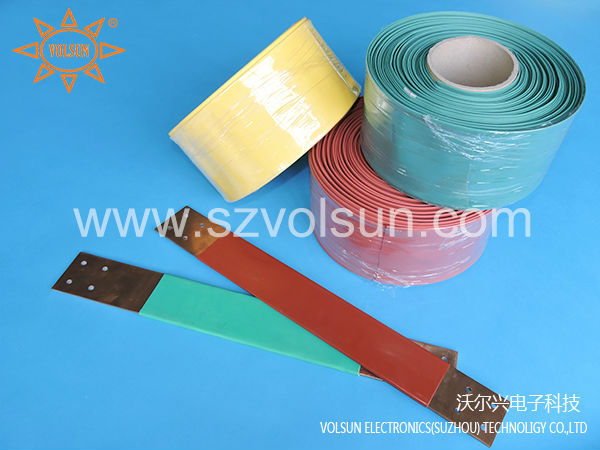

Replace Raychem BPTM 25KV yellow Insulation tubing









Product Description



Description





MPRS-MV, Replace Raychem BPTM 25KV yellow insulation tubing, is a kind of continuous tube shape material made of radiation cross-linked polyolefin, carry excellent insulating performance. yellow insulation tubing. Typical applications include insulation of electrical bus bar rated up to 24KV or higher voltage ratings, rectangular, square and round bus bars, inline bolted connections of rectangular bus bars, copper or aluminum bus bars, metal-clad switchgear, metal-enclosed bus bar, substation switchgear etc. yellow insulation tubing.













Features

Features



² Shrink ratio: 2.5:1



² Tracking resistant, low smoke emitting, high strength, flexible, flame retardant



² Min. shrink temperature: ≥84°C



² Min. full recovery temperature: ≥120°C



² Continuous operating temperature: -55°C~125°C



² RoHS compliant



² Standard Package :Black, White, Red ,Yellow, Green ,Blue. More colors are available upon request.













Dimensions

Technical Data:





Property

Typical data

Test Method

Tensile strength

≥8.0MPa

ASTM D 2671

Elongation at break

≥300%

ASTM D 2671

Tensile strength after heat aging

≥6.9MPa

130℃×168h

Elongation after heat ageing

≥100%

130℃×168h

Longitudinal change

-8%~+8%

ASTM D 2671

Flammability(Oxygen index)

≥28

GB/T 2406

Heat Shock

No tracks

JB 7829

Dielectric Strength

≥20kv/mm

ASTM D 149

Shore A Hardness

≤90

GB2411

Volume resistivity

≥1014Ω.cm

IEC 60093







Dimensions:



Size(mm)

As supplied D(mm)

After full recovered (mm)

Standard package

(M/Roll)

Inner diameter d

Wall thickness w

Φ15/6

≥15

≤6.0

2.5±0.20

50

Φ20/8

≥20

≤8.0

2.5±0.20

50

Φ25/10

≥25

≤10.0

2.5±0.20

50

Φ30/12

≥30

≤12.0

2.5±0.20

25

Φ40/16

≥40

≤16.0

2.8±0.30

25

Φ50/20

≥50

≤20.0

2.8±0.30

25

Φ65/26

≥65

≤26

2.8±0.30

25

Φ75/30

≥75

≤30

2.8±0.30

25

Φ85/34

≥85

≤34

2.8±0.30

25

Φ100/40

≥100

≤40

2.8±0.30

25

Φ120/48

≥120

≤48

2.8±0.30

25

Φ150/60

≥150

≤60

2.8±0.30

25

Φ180/72

≥180

≤72

2.8±0.30

25

Φ210/84

≥210

≤84

2.8±0.30

20

Φ230/92

≥230

≤92

2.8±0.30

20

Φ250/100

≥250

≤100

2.8±0.30

20

Φ300/120

≥300

≤120

2.8±0.30

15
